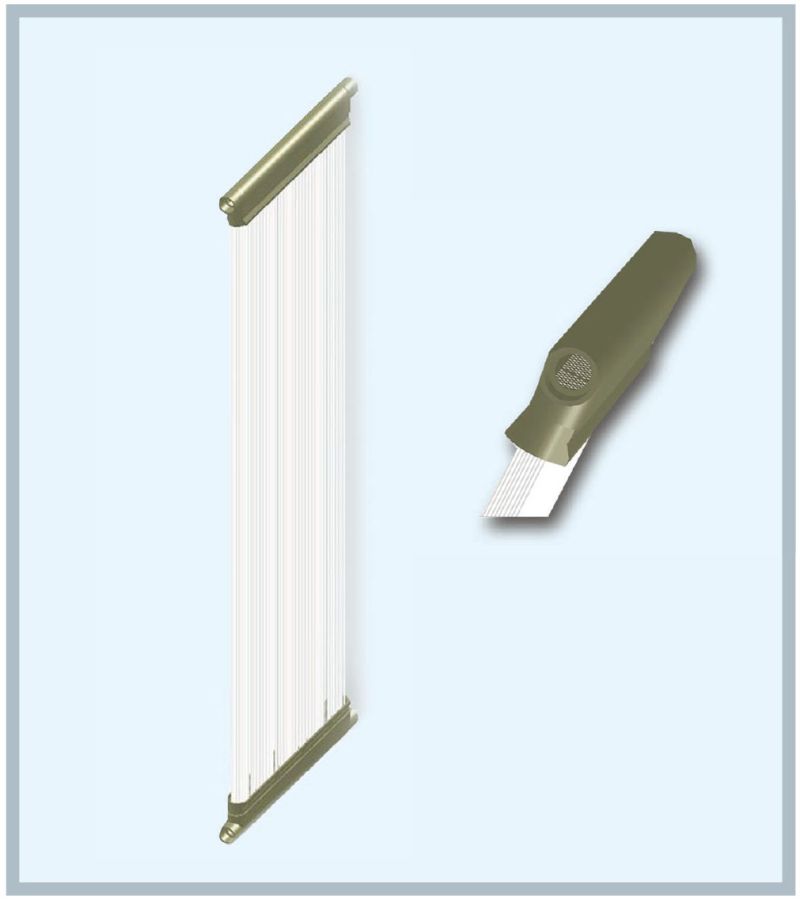

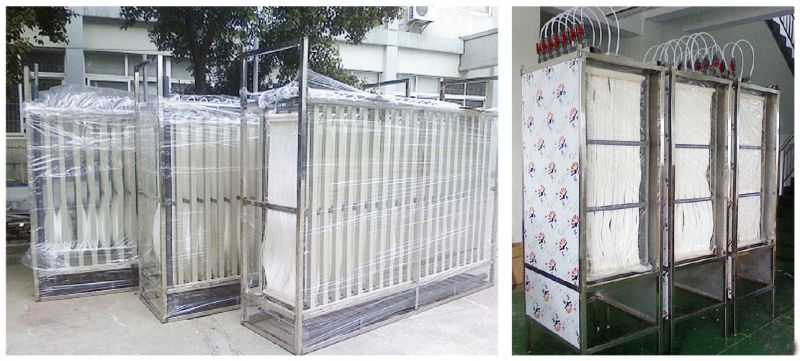

CPCELLTMCFP series immersion (curtain) membrane modules mainly have two series (CFP-PVDF and CFP-PTFE) and three specifications (CFP-A1, CFP-A2, CFP-A3)
|
CPCELLTM CFP series immersion (curtain) membrane module selection table |
|||
|
Product Series |
Model |
Suitable field |
Design water production L/D·curtain |
|
CPCELLTMCFP Series immersion (curtain) film |
CFP—A1 |
Urban domestic sewage treatment and water reuse in buildings;
|
3500~5500 |
|
CFP—A2 |
5500~8500 |
||
|
CFP—A3 |
7200~10800 |
||
|
CFP—A4 |
8600~12600 |
||
Net source CFP series immersion (curtain) PVDF film (CFP-PTFE)
Membrane material: PTFE nano-alloy (PTFE)
Scope of application: wastewater treatment, reuse of water
Advantages: saving the first phase of civil construction investment, improving the effluent quality of the sewage treatment system, etc.
CPCELLTMCFP series immersion (curtain) PTFE membrane module performance parameter table
|
|
Item No. |
CFP-A1-PTFE |
CFP-A2-PTFE |
CFP-A3-PTFE |
CFP-A4-PTFE |
|

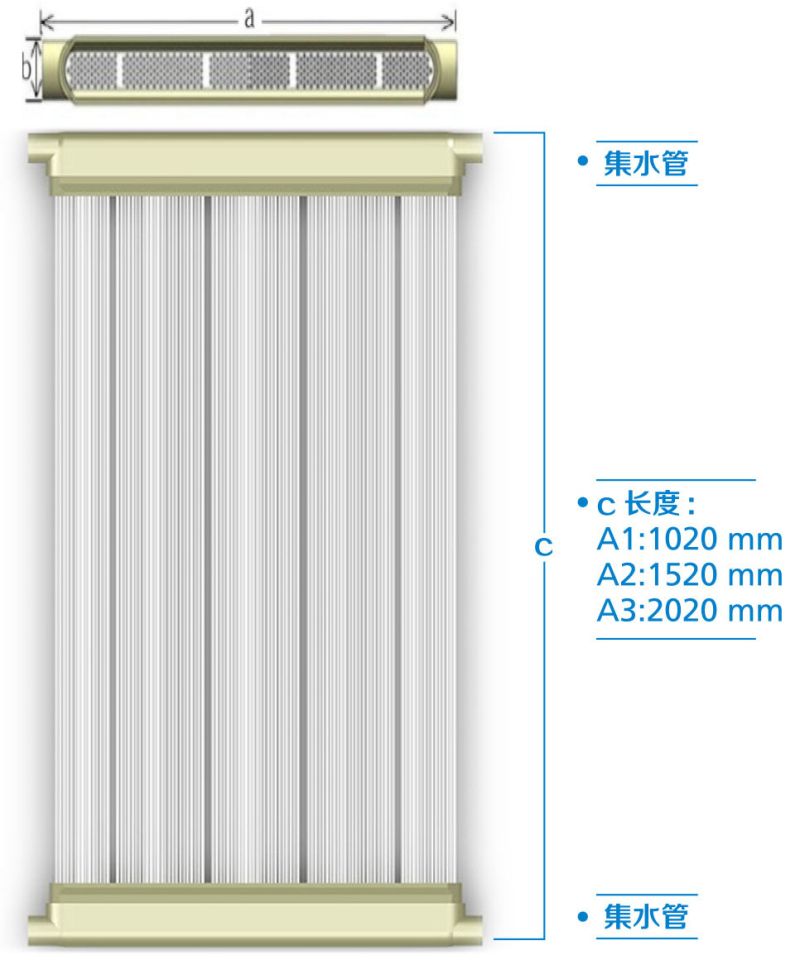

Membrane assembly |
physical dimension |
537×38×1020 |
537×38×1520 |
537×38×2020 |
537×38×2220 |
|
Membrane material |
PTFE |
||||
|
Membrane area (m2/curtain) |
8.7 |
13.6 |
18.5 |
20.4 |
|
|
Filter aperture (μm) |
0.2/0.05 |
||||
|
Interface mode |
O-ring socket |
||||
|
Design water flow (L/m2·h) |
8~106 |
||||
|
Filtering method |
Negative pressure suction / gravity |
||||
|
Conditions of Use |
Continuous operation of the pH range |
0~14 |
|||
|
Operating pressure (MPa) |
-0.06~0 |
||||
|
Operating temperature (°C) |
5~50 |
||||
|
Chemical cleaning pH range |
0~14 |
||||
|
Chemical cleaning cycle |
Depending on the transmembrane pressure difference |
||||
|
Recommended transmembrane pressure difference (MPa) |
＜0.06 |
||||
|
Recommended backwash pressure (MPa) |
＜200 |
||||
|
|
Water turbidity (NTU) |
<1.0 (under standard test conditions) |
|||
|
Note: The above parameters are subject to change without prior notice. Non-standard customized products are subject to actual parameters. |
|||||
The performance parameter table of this product is written according to the experience and facts of the net source. The net source confirms the correctness and reliability of the data, and the relevant design parameters are for reference only. Since the user's conditions of use are not controlled by a net source, the customer is responsible for determining whether the net source product is suitable for its use. For specific design issues, please consult the source directly and the source will provide all possible assistance. The data in this table indicates that it may be changed or updated without prior notice. Please understand.
CPCELLTMCFP Series Immersion (Column) PTFE Membrane Module Performance Parameter Table
| Item No. | SFW-G1 | SFW-G2 |
| Appearance size (mm) | Φ225xL 1820 |
Φ225xL 2320 |
| Membrane form | External pressure hollow fiber membrane | |
|
Membrane material |
Polytetrafluoroethylene（PTFE） |
|
| Operation mode | Full flow filtration / cross flow filtration | |
| Interface size | DN50 | |
| Housing material | UPVC | |
| Fiber bonding material | Epoxy resin | |
| Membrane pore size (μm) | 0.05 | |
| Effective membrane area (m2) | 32 | |
| Pure water permeability（25℃ 0.1MPa） | ≥200L/m2·h·bar | |
| Maximum inlet pressure | 3.0bar | |
|
Maximum influent turbidity |
300NTU | |
|
Water turbidity (NTU) |
≤1 (influent water ≤25NTU) |
|
|
Water production SDI15 |
≤3 (influent water ≤10NTU) | |
